SRBF Bearings /Fiber / Fibre / Fabric Bearings / Textolite Bearings / Fabric sheets / Fibre / Fabric Castor Wheels for Indoor Trollies / Fabric Moulded Sheets
A Quality name
in fibre products
with market in
India, Pakistan,
Bangladesh, Nairobi,
Sri Lanka,Nepal,
Tanzania, Botswana
U.A.E. , Iran , USA & Ghana

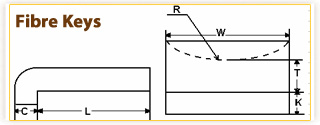

  Available Sizes of Fibre Keys



  MILL DRG.NO. W L C T K Wt.Kg. NOTES

  7" SE-160 40 155 20 20 12 0.2
  7"  SE-160 45 155 20 20 12 0.2 P/165
  8" SE-160 50 155 20 20 12 0.3
  8" SE-105A 55 140 20 20 12 0.33 105C
  8" 555E 60 130 18 25 10 0.3
  10" SE-105A 63 140 20 20 12 0.4
  12" SE-12 75 140 30 22 20 0.5
  12" LSRM-16 75 180 30 30 20 0.75
  12"  SE-P250 80 150 30 25 18 0.55
  16" SE-17K 85 210 25 20 25 0.7
  14" SE-16 90 150 30 18 20 0.65
  14" SE-465A 95 150 25 20 15 0.7
  16" 919A 100 200 30 20 15 1
  16" SE-465  110 150 25 20 15 0.8
  16" KL-16 110 200 30 25 20 1.15
  16" SE-116 115 180 35 25 15 1
  18" SE-775 120 200 30 25 15 1.2 Also L=245, Wt.1.5
  18" SE-177A 120 200 25 25 15 1 R-180
  18" SE-255 90/75 270 35 20 45 1 Sides Dovetailed
  20" SE-20 150 330 40 48 20 4
  20" SE-9 50 295 40 15 35 1.55 Quarter Round.
  24" SE-130 130 250 30 25 20   Also L=200,230 available
  28" SE-3416 160 200 NA 30 NA 1.5 Strip Bearing R=200
  28" Taylor Top 180 300 60 70 45 7.6
  28" " Bottom 180 260 60 48 45 5.2
  28" " Side 180 360 50 45 25 4.25
  30" Davy Big 320 390 50 80 30 20.2
  30" Davy Side 150 390 60 70 16 7
  30" Davy Small 260 155 NA 80 NA 5.2 Strip Bearing



ALSO, WE CAN MANUFACTURE FIBRE KEYS /COTTERS AS PER YOUR DRAWING AND DIMENSIONS.
